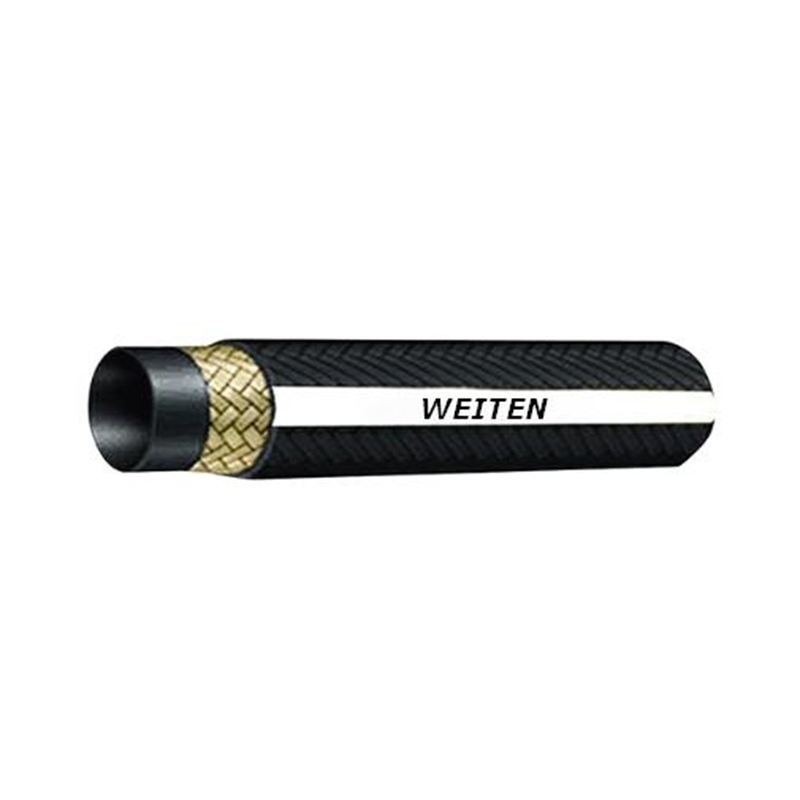

SAE 100R5

SAE 100R5

SAE 100R5

Inquiry now Contact us

Introduction

Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: One braid of high tensile steel wire

Cover: Textile braid impregnated with oil resistant synthetic rubber compound

Temperature:

-40°C to +100°C

Application:

Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

Parameter

Size		Hose ID		Hose O.D.		Working		Burst		Bend	Length	Weight
Size		Hose ID		Hose O.D.		Pressure		Pressure		Radius	Length	Weight
In.	mm	Min	Max	Min	Max	Bar	Psi	Bar	Psi	mm	m	kg/m
3/16	5	4.8	5.5	12.7	13.7	210	3050	840	12180	75	50/100	0.23
1/4	6.3	6.4	7.2	14.3	15.3	210	3050	840	12180	85	50/100	0.27
5/16	8	7.9	8.7	16.7	17.6	157	2280	628	9100	100	50/100	0.33
3/8	10	9.5	10.1	17.8	18.8	145	2100	580	8410	100	50/100	0.37
13/32	11	10.3	11.1	18.9	20	140	2030	560	8120	115	50/100	0.39
1/2	12.5	12.7	13.7	22.8	24	122	1770	488	7070	140	50/100	0.58
5/8	16	15.9	17	26.8	28	105	1520	420	6090	165	50/100	0.72
3/4	19	18.8	19.4	27.4	28.2	78	1130	312	4520	175	50/100	0.66
7/8	22	22.2	23.3	30.6	32.2	56	810	224	3250	185	20/40	0.72
1/1	25	25	25.8	33.6	34.4	50	730	200	2900	200	20/40	0.78
1/1	29	28.6	29.8	37.3	38.9	43	620	172	2494	230	20/40	0.83
1/1	35	34.9	36.1	43.7	45.2	35	510	140	2030	265	20/40	1
1 13/16	46	46	47.2	55.2	57.6	24	350	96	1392	335	20/40	1.34
1/2	51	50.4	51.6	61.4	62.6	24	350	96	1392	500	20/40	1.68
1/2	60	60.3	61.9	71.8	74.2	24	350	96	1392	610	20/40	2.21
1/3	76	76.2	77.8	89.3	91.7	14	200	56	812	840	20/40	2.71
