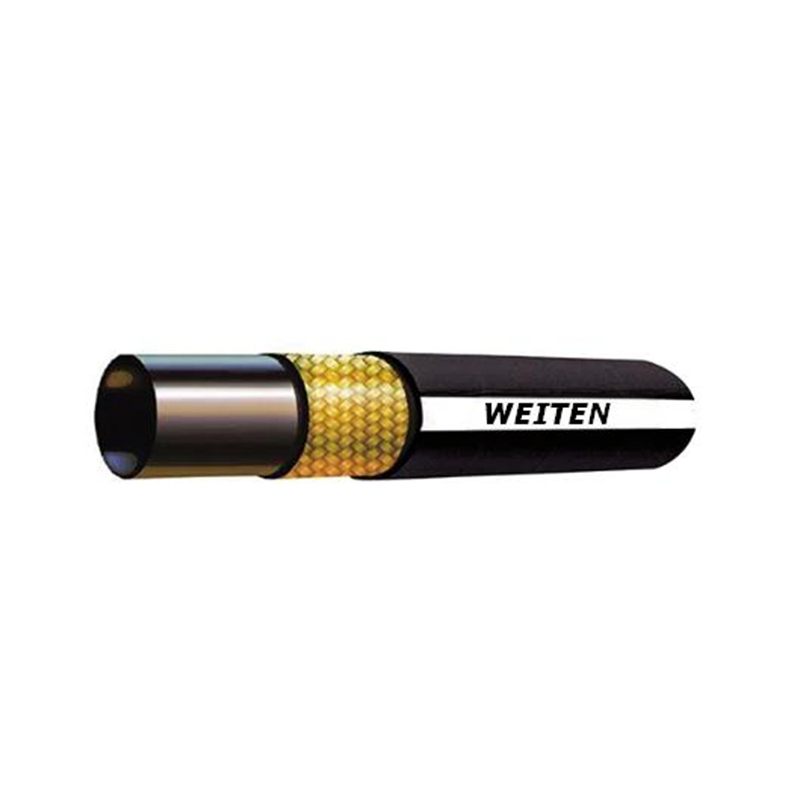

SAE 100R1AT / DIN EN853 1SN

Introduction

Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: One high tensile steel wire braid

Cover: Oil and weather resistant synthetic rubber

Temperature:

-40°C to +100°C

Application:

Petroleum based hydraulic fluid,gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.


Parameter

Hose ID

Hose O.D.

Working Pressure

Min. Burst Pressure

Min. Bend Radius

Length

Weight

In.

mm

In.

mm

psi

MPa

psi

MPa

In.

mm

m

kg/m

lb/ft

1/4

6.4

0.52

13.1

3275

22.5

13100

90

3.94

100

50/100

0.23

0.16

5/16

7.9

0.58

14.7

3125

21.5

12500

85

4.53

115

50/100

0.27

0.18

3/8

9.5

0.67

17.1

2600

18

10400

72

4.92

125

50/100

0.36

0.24

1/2

12.7

0.8

20.3

2325

16

9300

64

7.09

180

50/100

0.47

0.32

5/8

15.9

0.92

23.3

1900

13

7600

52

7.87

200

50/100

0.53

0.36

3/4

19.1

1.08

27.4

1525

10.5

6100

42

9.45

240

50/100

0.66

0.45

1

25.4

1.38

35.1

1275

8.8

5100

35

11.81

300

50/100

0.98

0.66

1 1/4

31.8

1.69

43

925

6.3

3700

25

16.54

420

20/40

1.29

0.87

1 1/2

38.1

1.95

49.5

725

5

2900

20

19.69

500

20/40

1.53

1.03

2

50.8

2.48

63

600

4

2700

16

24.8

630

20/40

2.03

1.37

2 1/2

63.8

3.03

77

360

2.5

1600

10

29.92

760

20/40

2.71

1.83

3

76

3.46

88

290

2

1160

8

34.65

880

20/40

2.91

1.97
