DIN EN856 4SP

DIN EN856 4SP

DIN EN856 4SP

Inquiry now Contact us

Introduction

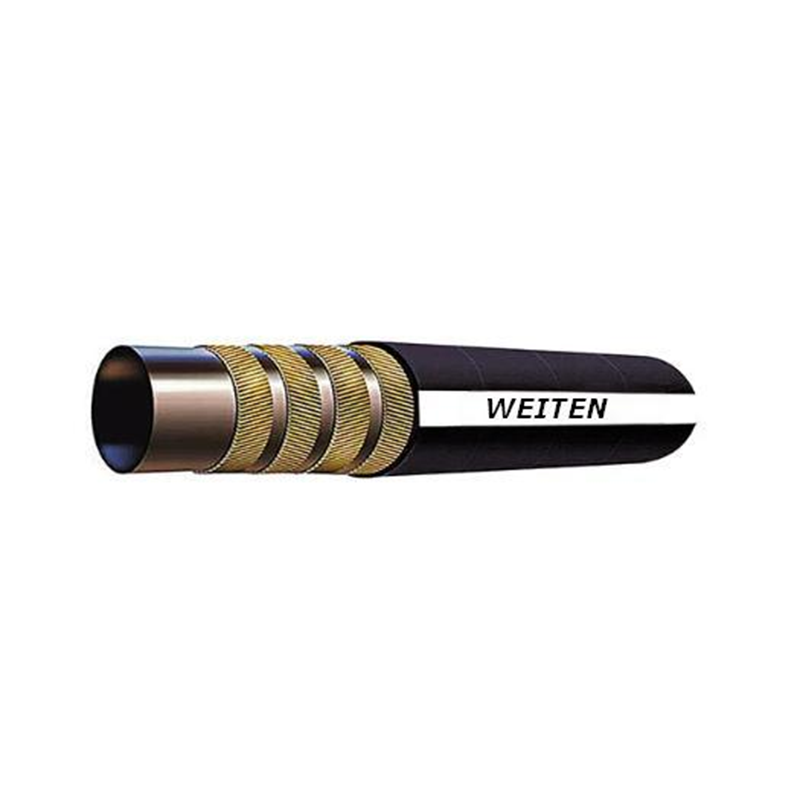

Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: Four high tensile steel wire spiral layers

Cover: Abrasion, ozone and weather resistant synthetic rubber

Temperature:

-40°C to +100°C

Application:

Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more

Parameter

Hose ID		Hose O.D.		Working		Min. Burst		Min. Bend		Length	Weight
Hose ID		Hose O.D.		Pressure		Pressure		Radius		Length	Weight
In.	mm	In.	mm	psi	MPa	psi	MPa	In.	mm	m	kg/m	lb/ft
3/8	9.5	0.8	20.2	6455	44.5	25820	178	4.3	109.2	20/40/60	0.71	0.48
1/2	12.7	0.91	23	6018	41.5	24072	166	4.7	119.4	20/40/60	0.85	0.57
5/8	15.9	1.04	26.5	5075	35	20300	140	5.5	139.7	20/40/60	1.03	0.7
3/4	19	1.22	31	5075	35	20300	140	6.7	170.2	20/40/60	1.58	1.07
1	25.4	1.48	37.6	4060	28	16240	112	13.4	340.4	20/40/60	2.01	1.36
1 1/4	31.8	1.79	45.4	3045	21	12180	84	18.1	459.7	20/40/60	2.68	1.81
1 1/2	38.1	2.06	52.4	2685	18.5	10730	74	22	560	20/40/60	3.3	2.23
2	50.8	2.63	66.8	2395	16.5	9580	66	26	660	20/40/60	4.37	2.95
