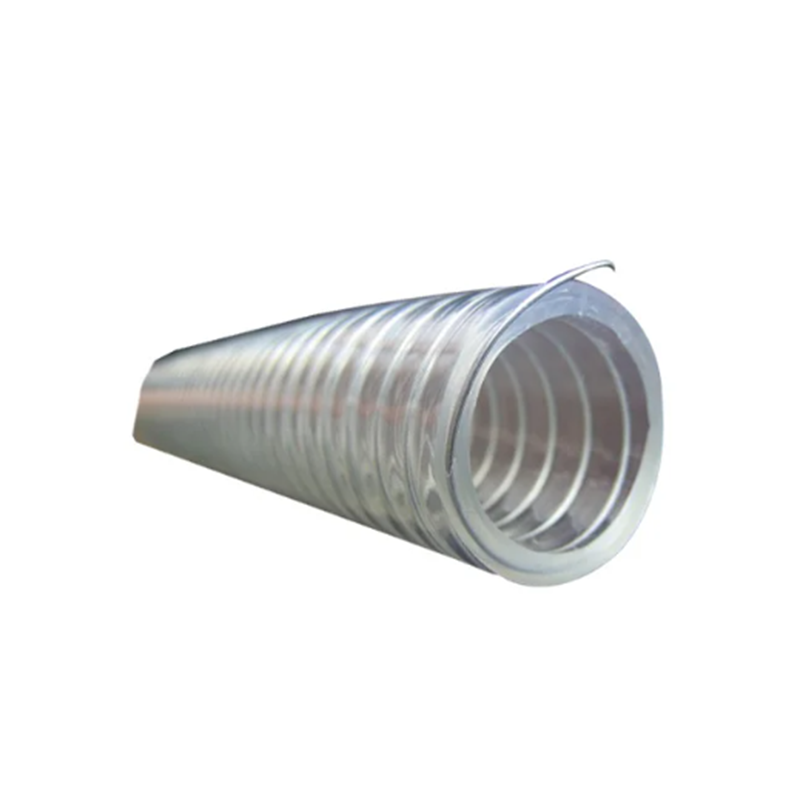

STEEL WIRE REINFORCED PVC HOSE

Catalog

Inquiry now Contact us

Introduction

Characteristics:

·This hose, with steel screwing inlaid, which with small bending radius, no smells, non-poison, light, transparent.

·It has good adaptability to hard weather conditions and minus pressure.

·Be enduring of high intensity, strong pulling force,and convenient for installation and transportation.

·Working Temperature: from -5℃ to +65℃

Application:

·Widely used for drawing and conveying water, oil and powder in factories agriculture, engineering, food stuffs and sanitary lines. ·We can produce the high temperature hose up to +120℃ depends on the using environment.

Parameter

British Measurement	Metric Measurement			W.P.	B.P.	Weight
British Measurement	I.D.	Wall	Length	W.P.	B.P.	Weight
Inch	mm	Thickness	M/roll	Mpa	Mpa	Kg/m
3/8	Φ10	2.8-3.0	100	0.5	1.5	0.2
1/2	Φ13	2.8-3.0	100	0.5	1.5	0.23
5/8	Φ16	2.3-2.8	100	0.5	1.5	0.25
3/4	Φ19	2.5-2.8	50	0.5	1.5	0.3
3/4	Φ19	3.6-3.8	50	0.5	1.5	0.4
1	Φ25	1.5-1.7	50	0.35	1.05	0.25
1	Φ25	1.7-1.8	50	0.4	1.2	0.3
1	Φ25	2.6-2.8	50	0.45	1.35	0.4
1 1/4	Φ32	2.3-2.5	50	0.3	0.9	0.5
1 1/4	Φ32	3.2-3.5	50	0.4	1.2	0.7
1 3/8	Φ34	2.9-3.0	50	0.3	0.9	0.6
1 1/2	Φ38	2.2-2.3	50	0.2	0.6	0.5
1 1/2	Φ38	3.5-3.8	50	0.35	1.05	0.8
1 1/2	Φ38	4.2-4.5	50	0.45	1.35	0.1
	Φ40	3.0-3.5	50	0.25	0.75	0.7
1 3/4	Φ45	3.0-3.3	50	0.25	0.75	0.8
1 3/4	Φ45	3.6-3.7	50	0.35	1.05	1
2	Φ50	2.5-2.8	50	0.2	0.6	0.8
2	Φ50	3.2-3.3	50	0.25	0.75	1
2	Φ50	3.7-3.8	50	0.35	1.05	1.2
2	Φ50	4.8-4.9	50	0.4	1.2	1.4
2 3/8	Φ58	3.8-4.0	40	0.25	0.75	1.2
2 3/8	Φ58	4.2-4.5	40	0.25	0.75	1.4
2 1/2	Φ64	2.8-3.1	40	0.12	0.36	1.2
2 1/2	Φ64	3.5-3.7	40	0.18	0.54	1.6
2 1/2	Φ64	5.0-5.5	40	0.25	0.75	2
3	Φ75	3.8-4.0	40	0.18	0.54	1.8
3	Φ75	4.3-4.7	40	0.2	0.6	2
3	Φ75	5.3-5.5	40	0.3	0.9	2.5
3 1/2	Φ89	3.8-4.2	30	0.15	0.45	2.5
3 1/2	Φ89	5.5-6.0	30	0.2	0.6	3
4	Φ102	4.2-4.3	30	0.1	0.3	2.6
4	Φ102	5.0-5.3	30	0.15	0.45	3
4 1/2	Φ110	5.0-5.2	20	0.3	0.9	4.5
5	Φ127	5.0-5.4	20	0.3	0.9	5
6	Φ152	6.0-6.3	20	0.3	0.9	6
