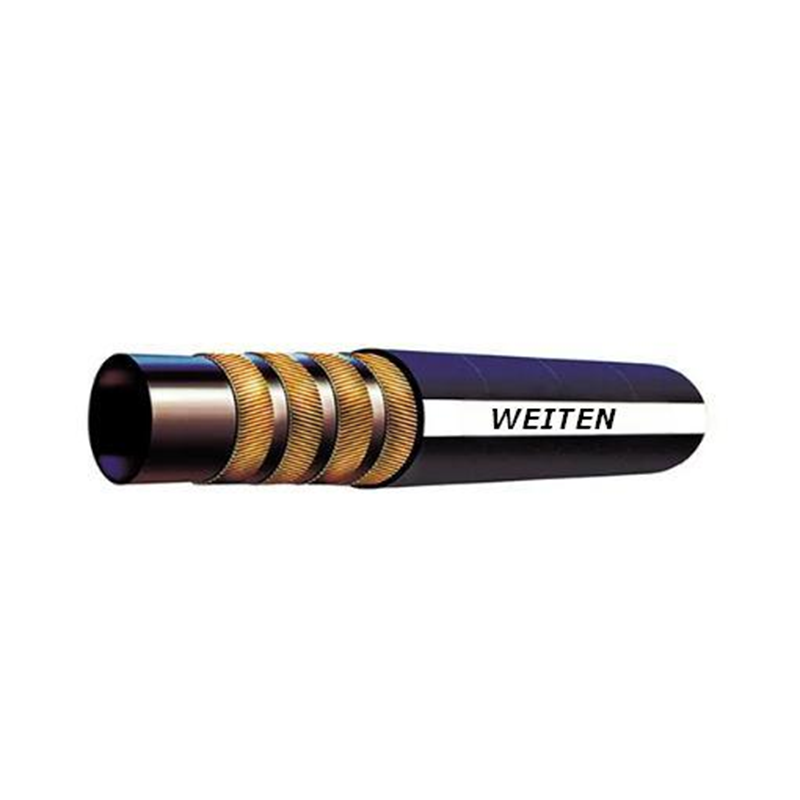

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature:
-40°C to +100°C
Application:
Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
Hose ID | Hose O.D. | Working Pressure | Min. Burst | Min. Bend | Length | Weight | ||||||
Pressure | Radius | |||||||||||
In. | mm | In. | mm | psi | MPa | psi | MPa | In. | mm | m | kg/m | lb/ft |
3/4 | 19 | 1.22 | 31 | 6090 | 42 | 27840 | 168 | 11 | 280 | 20/40/60 | 1.58 | 1.07 |
1 | 25.4 | 1.48 | 37.6 | 5510 | 38 | 22040 | 152 | 13.4 | 340 | 20/40/60 | 2.01 | 1.36 |
1 1/4 | 31.8 | 1.79 | 45.4 | 4713 | 32.5 | 18850 | 130 | 18.1 | 460 | 20/40/60 | 2.68 | 1.81 |
1 1/2 | 38.1 | 2.06 | 52.4 | 4200 | 29 | 16800 | 116 | 22 | 560 | 20/40/60 | 3.3 | 2.23 |
2 | 50.8 | 2.63 | 66.8 | 3625 | 25 | 14500 | 100 | 27.6 | 700 | 20/40/60 | 4.37 | 2.95 |
