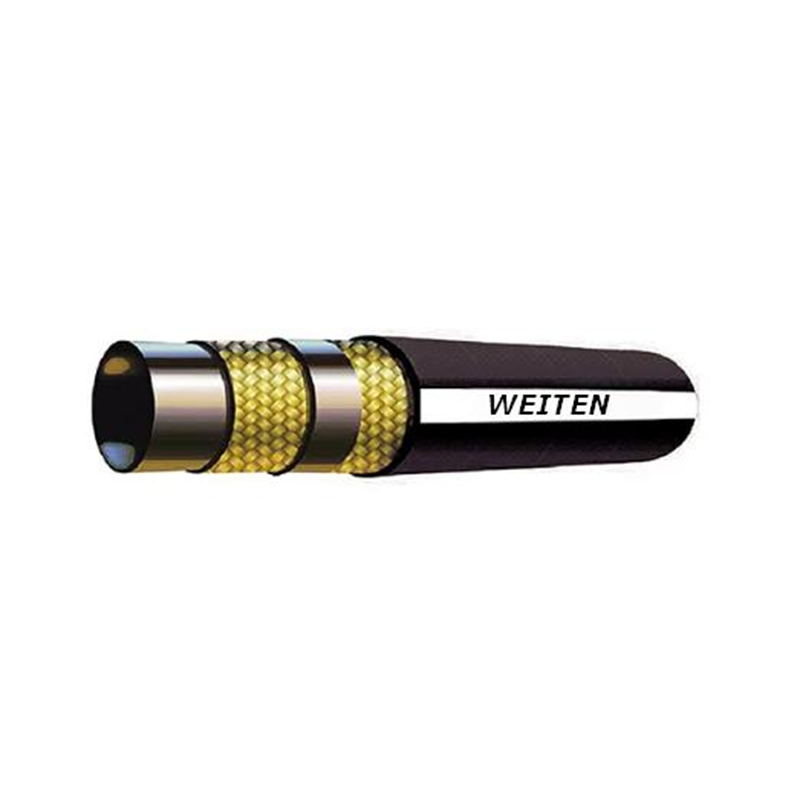

SAE 100R2AT / DIN EN853 2SN

Introduction

Construction:

Tube: Oil resistant synthetic rubber

Reinforcement: Two high tensile steel wire braids

Cover: Oil and weather resistant synthetic rubber

Temperature:

-40°C to +100°C

Application:

Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.


Parameter

Hose ID

Hose O.D.

Working Pressure

Min. Burst Pressure

Min. Bend Radius

Length

Weight

In.

mm

In.

mm

psi

MPa

psi

MPa

In.

mm

m

kg/m

lb/ft

1/4

6.4

0.59

15.1

5800

40

23200

160

3.94

100

50/100

0.38

0.26

5/16

7.9

0.64

16.3

5075

35

20300

140

4.53

115

50/100

0.44

0.3

3/8

9.5

0.74

18.7

4800

33

19200

132

4.92

125

50/100

0.56

0.38

1/2

12.7

0.86

21.8

4000

27.5

16000

110

7.09

180

50/100

0.66

0.45

5/8

15.9

0.98

25

3625

25

14500

100

7.87

200

50/100

0.8

0.54

3/4

19.1

1.14

29

3120

21.5

12480

85

9.45

240

50/100

0.99

0.67

1

25.4

1.43

36.5

2400

16.5

9600

65

11.81

300

50/100

1.36

0.92

1 1/4

31.8

1.85

47

1810

12.5

7240

50

16.54

420

20/40

2.01

1.36

1 1/2

38.1

2.11

53.6

1300

9

5200

36

19.69

500

20/40

2.35

1.59

2

50.8

2.58

65.6

1175

8

4700

32

24.8

630

20/40

2.75

1.86

2 1/2

63.8

3.07

78

720

5

2880

20

29.92

760

20/40

3.56

2.41

3

76

3.56

90.5

580

4

2320

16

34.65

880

20/40

4.03

2.72
