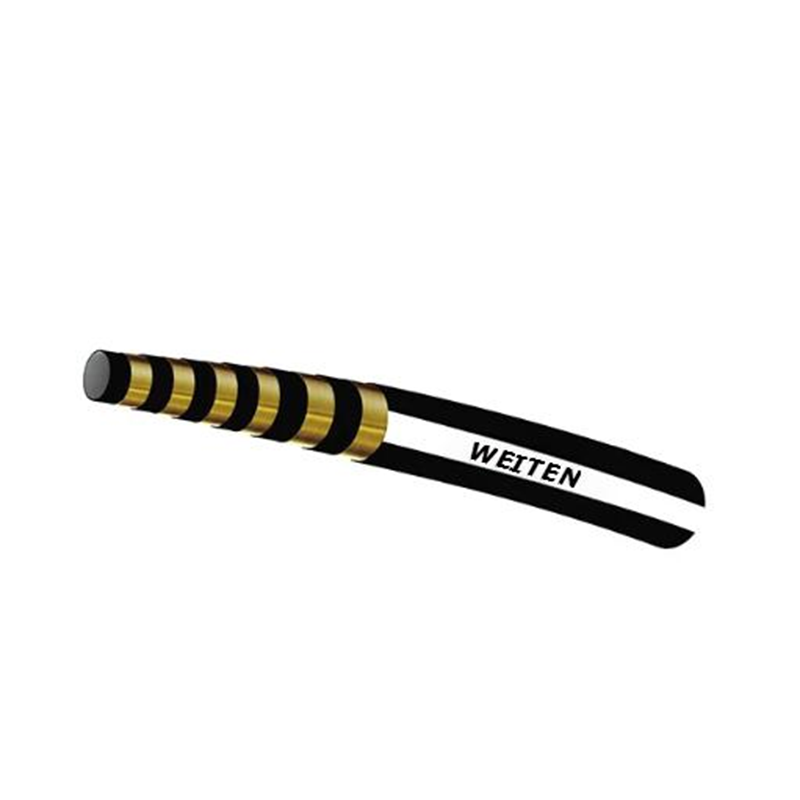

Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Six high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature:
-40°C to +121°C
Application:
Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Hose ID | Hose O.D. | Working Pressure | Min. Burst | Min. Bend | Length | Weight | ||||||
Pressure | Radius | |||||||||||
In. | mm | In. | mm | psi | MPa | psi | MPa | In. | mm | m | kg/m | lb/ft |
3/4 | 19 | 1.22 | 31 | 6090 | 42 | 24360 | 168 | 10.5 | 267 | 20/40 | 1.57 | 1.06 |
1 | 25.4 | 1.52 | 38.7 | 6090 | 42 | 24360 | 168 | 13 | 330 | 20/40 | 2.19 | 1.48 |
1 1/4 | 31.8 | 1.94 | 49.4 | 6090 | 42 | 24360 | 168 | 17.5 | 445 | 20/40 | 3.92 | 2.65 |
1 1/2 | 38.1 | 2.26 | 57.4 | 6090 | 42 | 24360 | 168 | 21 | 533 | 20/40 | 4.9 | 3.31 |
