STEAM HOSE

STEAM HOSE

STEAM HOSE

Inquiry now Contact us

Introduction

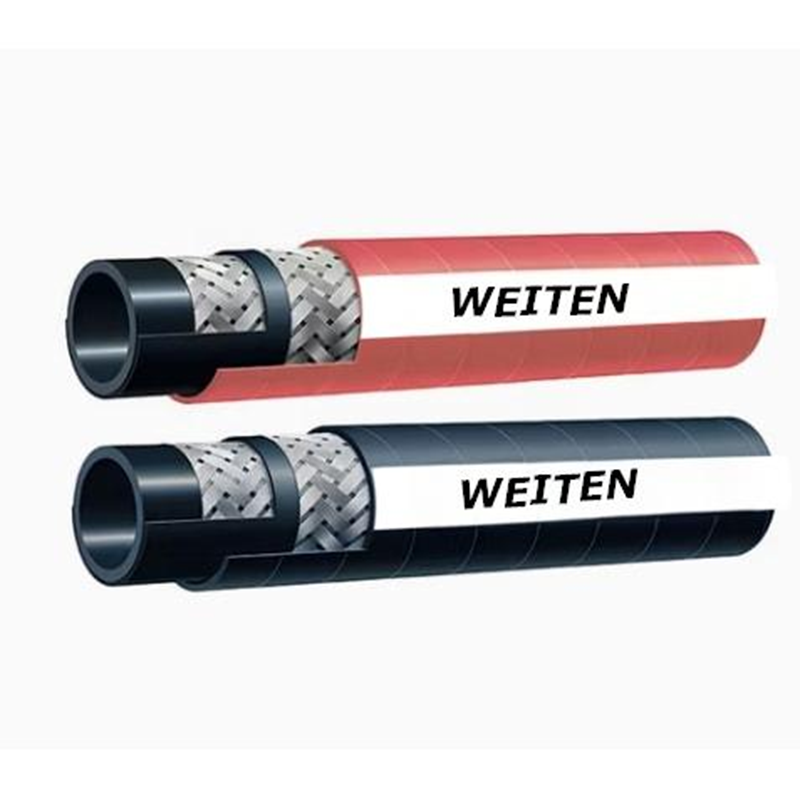

Construction:

Tube: Synthetic rubber EPDM

Reinforcement: high tensile wire braiding

Material: EPDM

Working pressure: 10bar/20bar

Steam Hose Application:The steam hose is used for the saturated steam in chemical industry, petroleum industry, shipbuilding industry

Parameter

W/B
	Size		Outside Diameter	Working		Burst		Bending Radius	Length
	Size		Outside Diameter	Pressure		Pressure		Bending Radius	Length
	mm	inch	mm	Mpa	Psi	Mpa	Psi	mm	m
1W	10	3/8″	21.5	1	150	4	570	130	20/ 50
	13	1/2″	24.5	1	150	4	570	180	20/ 50
	16	5/8″	27.5	1	150	4	570	205	20/ 50
	19	3/4″	30.5	1	150	4	570	240	20/ 50
	22	7/8″	33.5	1	150	4	570	280	20/ 50
	25	1″	37	1	150	4	570	300	20/ 50
	32	1-1/4″	44	1	150	4	570	420	20/ 40
	38	1-1/2″	50.5	1	150	4	570	500	20/ 40
	45	1-3/4″	57.5	1	150	4	570	500	20/ 40
	51	2″	63.5	1	150	4	570	630	20/ 40
	64	2-1/2″	77.5	1	150	4	570	700	20/ 40
2W	10	3/8″	23	2	300	6	860	130	20/ 50
	13	1/2″	26	2	300	6	860	180	20/ 50
	16	5/8″	29	2	300	6	860	205	20/ 50
	19	3/4″	32	2	300	6	860	240	20/ 50
	22	7/8″	35	2	300	6	860	280	20/ 50
	25	1″	38.5	2	300	6	860	300	20/ 50
	32	1-1/4″	45.5	2	300	6	860	420	20/ 40
