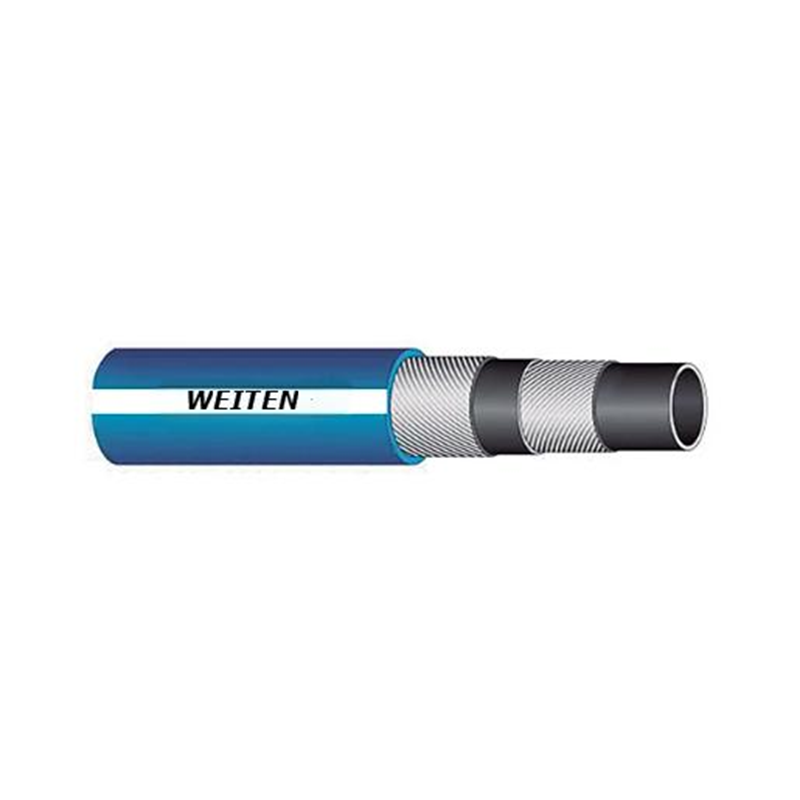

Oxygen Hose

Oxygen Hose

Oxygen Hose

Inquiry now Contact us

Introduction

Tube:

EPDM/SBR blended, black and smooth

Reinforcement:

textile braided high tensile synthetic yarn

Cover:

EPDM/SBR blended, blue, smooth weather and ozone, abrasion resistant

Application:

for conveying welding gases

Temperature:

-40℃~+90℃

Parameter

Inside		Outside Diameter	Working		Burst		Nominal	Length
Diameter		Outside Diameter	Pressure		Pressure		Weight	Length

inch	mm	mm	bar	psi	bar	psi	kg/m	m
1/4	6	13	20	300	60	900	0.17	50/ 100
5/16	8	15	20	300	60	900	0.22	50/ 100
3/8	10	18	20	300	60	900	0.29	50/ 100
1/2	13	21	20	300	60	900	0.37	50/ 100
5/8	16	25	20	300	60	900	0.56	50
3/4	19	29	20	300	60	900	0.65	50
1	25	36	20	300	60	900	0.86	50
