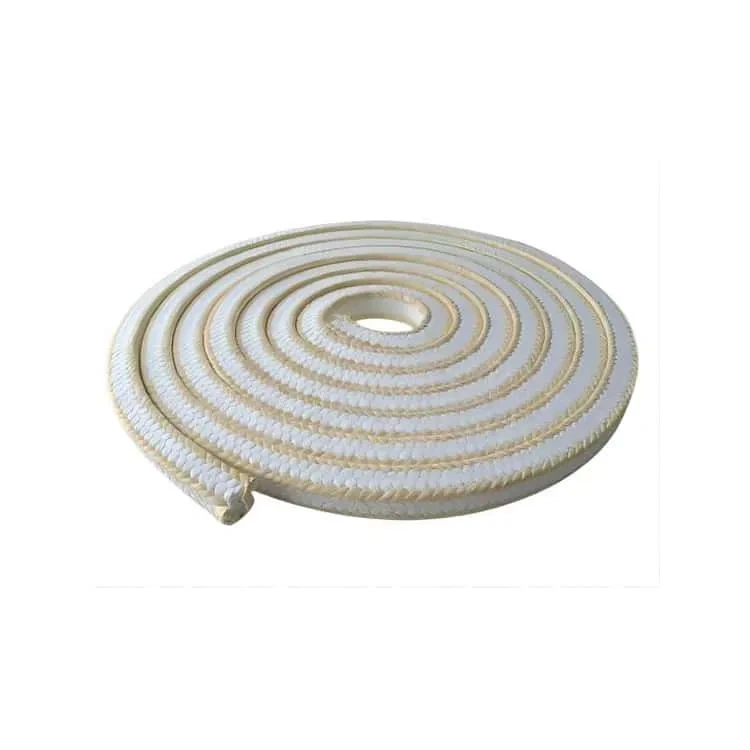

White PTFE Packing with Aramid Corners does exactly that. This innovative hybrid packing features a body of high-purity white PTFE reinforced with aramid fiber corners. The result is a sealing material that delivers:
Excellent chemical resistance (from PTFE)
High mechanical strength (from aramid)
Low friction and non-abrasive (from PTFE)
Enhanced corner strength (from aramid reinforcement)
This design makes it an ideal choice for pumps, valves, and rotating equipment handling aggressive media while requiring long service life and minimal shaft wear.
The white PTFE body resists almost all chemicals, including strong acids, alkalis, solvents, and oxidizers, across the full pH range of 0–14.
High Mechanical Strength
Aramid corners provide reinforcement where packing experiences the most stress, preventing extrusion and deformation under high pressure.
PTFE's naturally low coefficient of friction (0.05–0.09) minimizes wear on shafts and valve stems, extending equipment life.
Suitable for continuous operation from -200°C to +260°C, making it versatile for cryogenic and high-temperature applications.
The hybrid construction maintains a tight seal even under pressure fluctuations, reducing leakage and maintenance frequency.
Can be cut and installed on-site without special tools.
Item | Description |
Cross-sectional Shape | Square with reinforced corners |
Cross-sectional Size | 3 mm to 50 mm (custom sizes available) |
Length | 3 to 10 meters per coil (cut-to-length available) |
Color | White (PTFE body) with dark (aramid) corner reinforcement |
Construction | Braided or twisted aramid corners with PTFE core |
Parameter | Unit | Typical Value |
Density | g/cm³ | 1.5 – 1.8 |
Continuous Operating Temperature | °C | -200 to +260 |
Pressure Limit (Pumps) | bar | Up to 250 |
Pressure Limit (Valves) | bar | Up to 400 |
pH Resistance Range | — | 0 – 14 |
Coefficient of Friction | — | 0.05 – 0.09 |
Tensile Strength | MPa | ≥ 30 |
Centrifugal pumps handling acids, alkalis, and solvents
Reactor and agitator seals
Valve stem packing in corrosive service
Sanitary pumps and valves
Aseptic filling equipment
FDA-compliant sealing applications
Boiler feed pumps
Condensate extraction pumps
High-pressure valve seals
Seawater pumps
Chemical injection systems
Rotary shaft seals
Feature | Benefit |
PTFE body | Handles almost any chemical – no need to stock multiple materials |
Aramid corners | Prevents extrusion and blow-out under high pressure |
Low friction | Reduces energy consumption and shaft wear |
Wide temperature range | One product works for cryogenic and hot applications |
White PTFE grade | Suitable for food, pharmaceutical, and sanitary applications |
This hybrid design is particularly valuable in chemical plants, pharmaceutical facilities, and food processing lines where both chemical resistance and mechanical durability are required.
Conclusion
White PTFE Packing with Aramid Corners represents an intelligent engineering compromise – taking the best properties of two proven materials and combining them into a single, high-performance sealing solution.
For engineers and maintenance professionals dealing with aggressive chemicals, high pressures, or sanitary requirements, this hybrid packing offers a reliable, long-lasting, and cost-effective answer. It reduces inventory complexity, extends equipment life, and minimizes downtime.
Whether upgrading existing pumps or specifying seals for new equipment, White PTFE Packing with Aramid Corners deserves serious consideration.
