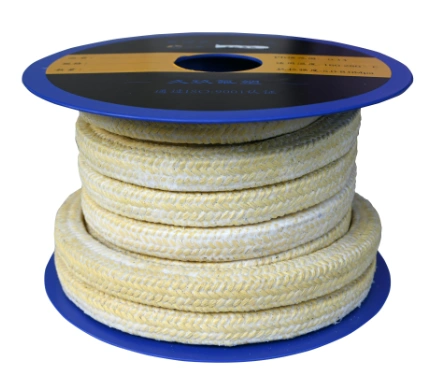

What is Aramid Fiber Packing

Aramid fiber packing is a flexible sealing material manufactured using aramid fibers as the primary raw material, processed through weaving and impregnation with lubricants (such as PTFE, graphite, silicone oil, etc.). It is primarily installed within the shaft gaps of pumps, valves, mixers, and reactors to prevent the leakage of water, oil, gas, and other process media; as such, it serves as a high-end, eco-friendly sealing material designed to replace traditional asbestos packing.

Advantages of Aramid Fiber Packing

High Temperature Resistance

Standard temperature resistance ranges from -50°C to 300°C; with special modification, it can withstand temperatures exceeding 350°C. It neither melts nor becomes brittle under high-temperature conditions.

High Strength and Wear Resistance

The inherent strength of aramid far surpasses that of cotton, hemp, or graphite packing. It resists wear even when the shaft rotates at high speeds, offering a service life 3 to 6 times longer than that of ordinary packing.

Corrosion, Acid, and Alkali Resistance

Resistant to various acids, alkalis, oils, wastewater, chemical solvents, and steam; highly suitable for use in chemical and petrochemical environments.

Eco-friendly and Asbestos-Free

Contains no asbestos dust; it is non-toxic, non-polluting, and complies with industrial environmental protection standards.

High Toughness and Break Resistance

Features a dense braided structure that remains intact under compression; it provides a tight seal and effectively prevents leakage.

Wide Range of Applications

Suitable for use in centrifugal pumps, valves, speed reducers, papermaking machinery, power plants, nuclear facilities, wastewater treatment systems, and more.

Main Types of Aramid Fiber Packing

1. Classified by Material:

• Para-Aramid Packing

• Meta-Aramid Packing

• Aramid + PTFE Braided Packing

• Aramid + Graphite Braided Packing

2. Classified by Impregnation Treatment:

• Pure Aramid Dry-Braided Packing

• PTFE-Impregnated Aramid Packing

• Graphite-Impregnated Aramid Packing

• Impregnated with Silicone Oil / Specialized Lubricant

3. Classified by Operating Conditions:

• General-Purpose Aramid Packing

• High-Pressure, High-Temperature Aramid Packing

• Corrosion-Resistant Chemical-Grade Aramid Packing

• Food-Grade Aramid Packing

Conclusion

In summary, thanks to its exceptional properties—including high-temperature resistance, abrasion resistance, and chemical corrosion resistance—aramid fiber packing has established itself as an indispensable material in the field of mechanical sealing. The scientific and rational selection and application of aramid fiber packing not only significantly enhance equipment sealing performance and operational stability but also reduce maintenance costs and boost production efficiency. Looking ahead, driven by continuous advancements in materials science, the performance of aramid fiber packing is expected to undergo further optimization, and its scope of application will continue to expand.
