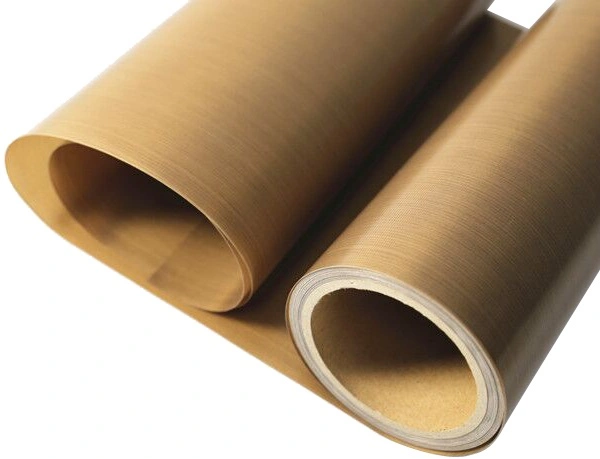

PTFE-Coated Fiberglass Fabric—fully known as Polytetrafluoroethylene (PTFE) coated glass fiber cloth—ingeniously combines the high strength of glass fiber with the corrosion resistance and non-stick properties of PTFE. It is a high-performance composite material capable of stable operation even in extreme environments. Manufactured using high-strength glass fiber cloth as a substrate, the material is produced through a specialized process involving impregnation with a PTFE emulsion, followed by drying, baking, and sintering steps. This process ensures that the PTFE adheres firmly to every individual fiber of the glass cloth, thereby endowing the material with a dual set of advantages.

Main characteristics of PTFE Fiberglass

1.Ultra-Wide Temperature Stability

Capable of long-term operation within an extreme temperature range of -196°C to +350°C. It can withstand high-temperature baking while simultaneously retaining its flexibility at ultra-low temperatures.

2. Exceptional Non-Stick Properties

Almost no substances adhere to its surface, making it extremely easy to clean. Consequently, it serves as an ideal material for non-stick liners and release sheets.

3. Superior Corrosion Resistance

Resistant to strong acids, strong bases, aqua regia, and various organic solvents, making it an ideal choice for chemical corrosion protection applications.

4. Low Friction & High Insulation

Possesses one of the lowest coefficients of friction among plastics (0.05–0.1), enabling "oil-free self-lubrication." Simultaneously, it exhibits excellent electrical insulation properties, with a dielectric constant of just 2.6.

5. Dimensional Stability & High Strength

Features an elongation coefficient of less than 5‰; its high tensile strength ensures that it maintains dimensional stability even under mechanical stress.

Advantages of PTFE Fiberglass

1.Comprehensive Performance

It combines resistance to extreme temperatures (both high and low), non-stick properties, corrosion resistance, electrical insulation, and high mechanical strength—a combination unmatched by most other materials.

2.Low Maintenance Costs

Its non-stick and self-lubricating characteristics significantly simplify cleaning and maintenance tasks.

3.Safe and Eco-friendly

It possesses fire-retardant properties; food-grade variants are FDA-certified and suitable for direct contact with food.

Main Applications of PTFE Fiberglass

Food & Baking:Baking sheets, microwave liners, food drying belts, conveyor belts for thawing frozen foods.

Industrial Conveying & Drying: High-temperature oven conveyor belts, fusing machine belts, guide belts for drying machinery.

Chemicals & Environmental Protection: Anti-corrosion coatings for pipelines, tank liners, flue gas desulfurization equipment for power plants.

Electronics & Electrical: Motor slot insulation, cable wrapping, high-frequency copper-clad laminates, substrates for pressure-sensitive adhesive tapes.

Rubber, Plastics & Machinery: Heat-sealing press belts, rubber vulcanization conveyor belts, release fabrics for grinding wheel curing, flexible expansion joints.

Contact us

If you would like to find out more about PTFE Fiberglass or to purchase PTFE Fiberglass, Please contact us for pricing and conditions. We can provide detailed information and tailor a solution to your needs.
