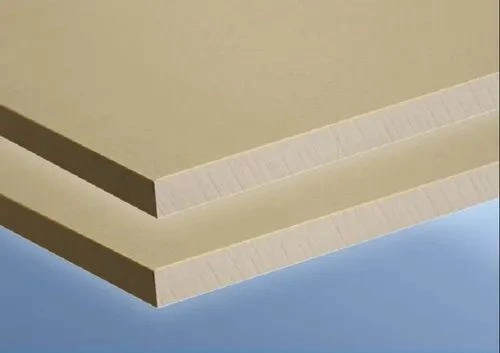

PEEK sheet is a high-performance thermoplastic engineering plastic sheet, which is widely used in high-end industrial fields with its excellent comprehensive performance.

Material properties of PEEK sheet

1.High temperature resistance: Long-term use temperature can reach 260℃, short-term temperature resistance exceeds 300℃, melting point is about 343℃, and it is one of the best temperature-resistant engineering plastics.

2.Mechanical strength: High rigidity, creep resistance and wear resistance, tensile strength can reach 90-100 MPa, bending strength can reach 170 MPa.

3.Chemical stability: Acid and alkali resistant, organic solvents, fuel oil and high-pressure steam, only soluble in concentrated sulfuric acid and other very few solvents.

4.Electrical properties: Excellent insulation, stable dielectric constant, suitable for high-frequency electronic components.

5.Flame retardancy: Complies with UL94 V-0 standard, no flame retardant needs to be added, and the smoke volume is extremely low when burning.

6.Radiation resistance: Anti-γ rays and X-rays, suitable for nuclear industry and medical equipment.

Main application areas of PEEK sheet

Electronic and electrical: insulating gaskets, semiconductor wafer carriers, high-temperature connectors.

Automotive industry: gearbox parts, sensor housings (oil and heat resistant).

Chemical equipment: pump valve linings, seals, corrosion-resistant pipe bushings.

Common specifications of PEEK sheet

Thickness: 1mm ~ 50mm.

Size: Common sizes of plates such as 300mm×300mm, 600mm×600mm or coils.

Color: natural color, black, other customized colors.

Processing method of PEEK sheet

Machining: easy turning, milling, drilling.

Thermoforming: can be pressed or molded at high temperatures.

Bonding: special epoxy resin or PEEK solvent-based glue is required.

Injection molding: requires a high-temperature injection molding machine.

PEEK sheet has become an ideal material to replace metal and ceramics due to its excellent performance, but the cost is high and it is usually used for key components with demanding performance requirements. When purchasing, a comprehensive evaluation should be made based on specific working conditions.
