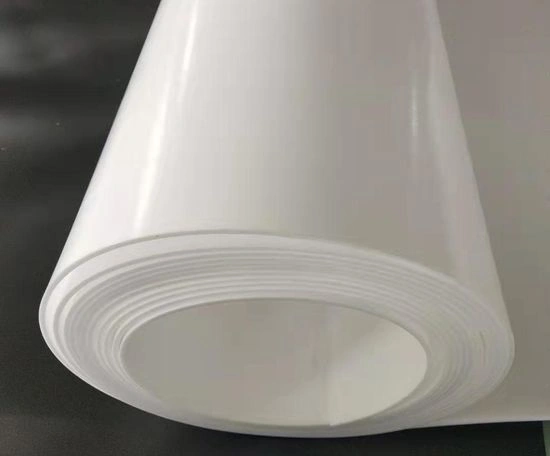

Skived PTFE sheet is a high-performance engineering plastic sheet made of polytetrafluoroethylene (PTFE) resin, which is pressed and sintered into cylindrical blanks and then skived on a precision lathe. It has excellent chemical stability, electrical insulation and extremely low friction coefficient, and is widely used in sealing, insulation, corrosion protection and lubrication.
1.Excellent high and low temperature resistance
Wide operating temperature range (-180°C ~ +260°C), physical properties can still be kept stable at high temperature.
2.Excellent corrosion resistance
Can withstand almost all strong acids, strong alkalis, salts and organic solvents.
3.Extremely low friction coefficient
The lowest friction coefficient among all solid materials, suitable for self-lubricating and anti-friction applications.
4.Excellent electrical insulation performance
High dielectric strength, excellent electrical insulation performance, widely used in high-frequency and high-voltage environments.
5.Strong non-stickiness
Extremely low surface tension, liquids and solids are difficult to adhere, easy to clean.
6.Non-toxic, physiologically inert
Can be used in high-demand industries such as food, pharmaceuticals, and medical care.
Thickness range: 0.05mm ~ 6.0mm (customizable)
Width: Standard 600mm, 1000mm, 1200mm, up to 1500mm
Length: Can be sliced or rolled (thin specifications)
Color: Usually white, other colors can be customized (such as black, blue, etc.)
Item | Unit | Value |
Specific gravity | g/cm³ | 2.1 ~ 2.3 |
Tensile strength | MPa | ≥15 |
Elongation at break | % | ≥150 |
Working temperature | ℃ | -180 ~ +260 |
Volume resistivity | Ω·cm | ≥10¹⁸ |
Dielectric strength | kV/mm | ≥10 |
Coefficient of friction | — | 0.04 ~ 0.10 |
Various types of sealing gaskets, chemical gaskets, anti-corrosion isolation sheets.
Electrical insulation layer, printed circuit board insulation layer.
Sliding guide rails, self-lubricating bearing gaskets.
Medical device contact parts, food machinery gaskets.
Semiconductor equipment, aerospace components, etc.
Performance indicators | Skived PTFE sheet | Molded PTFE sheet |
Manufacturing process | Peeling process, slicing from blanks | Molding and then sintering |
Surface quality | Very high, suitable for precision gaskets | Relatively rough |
Thickness range | Thin (0.05~6mm) | Thick (3mm and above) |
Flexibility | Better | Relatively hard |
Applications | Thin films, electrical insulation, precision gaskets | Thick plate cutting, mechanical parts processing |
If you would like to find out more about Skived PTFE sheet or to purchase Skived PTFE sheet, Please contact us for pricing and conditions. We can provide detailed information and tailor a solution to your needs.
