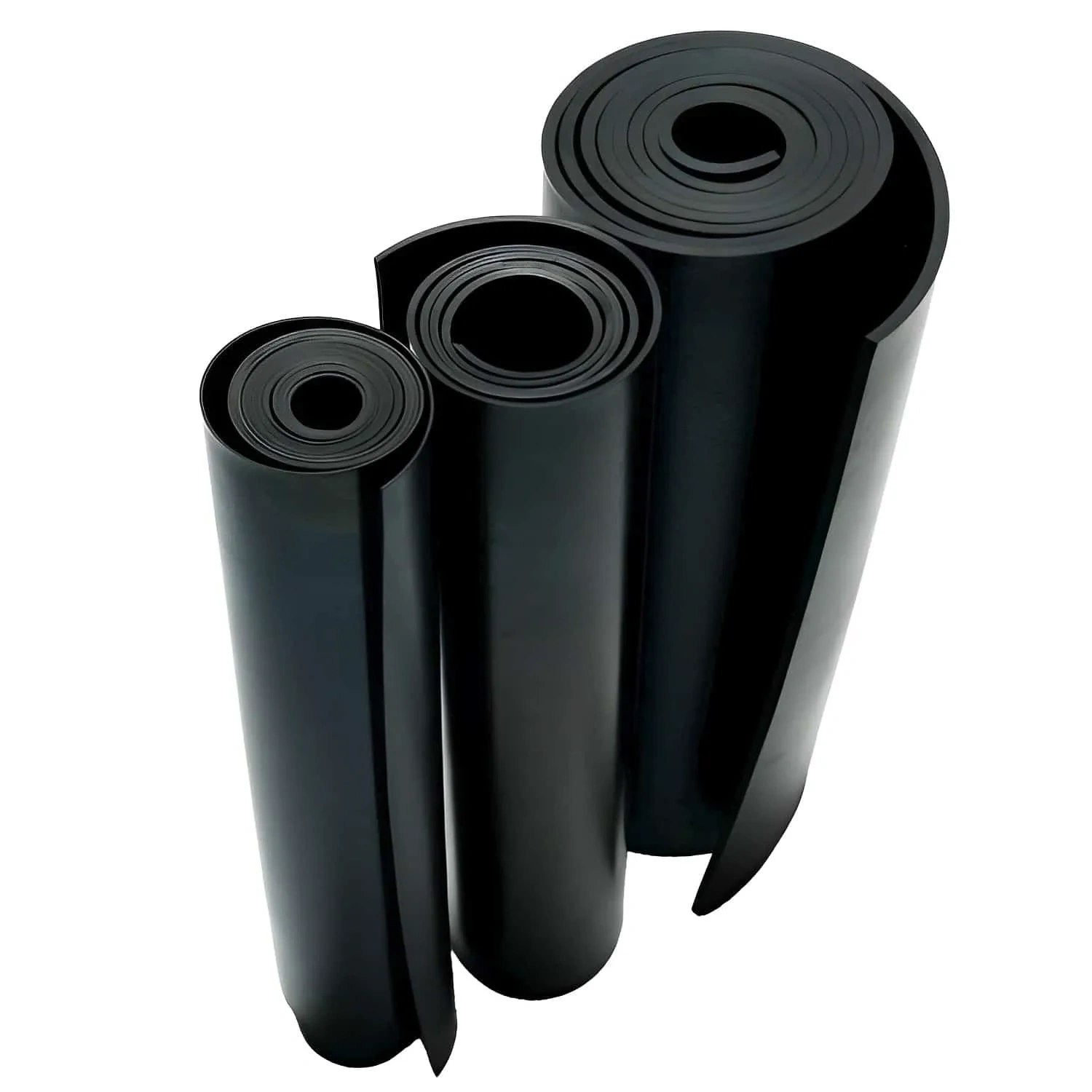

SBR Rubber Sheet

05 - Sep - 2025

SBR rubber sheet is a synthetic rubber product made from styrene and butadiene.

It has good abrasion resistance, impact resistance, and low temperature flexibility, as well as moderate aging and weathering resistance.

It is widely used in construction, automotive, and industrial sectors for applications such as gaskets, seals, flooring, and conveyor belts.



SBR Rubber Sheet



Basic Information

Product Description: Styrene butadiene rubber (SBR)

Color: Many colors available, black,white, red, green etc.

Insertion: Cloth and nylon insertion available.

Surface: smooth and fabric surface available.

Certification: ISO9001, ROHS and REACH.

Customization: Size can be customized to your requirements.


Application

Used in many conveyor belt applications

Widely used in general cushioning part, sealing, matting

Used in areas where low pressure, low chemical

Replacement for rubber in industrial plants and production lines



Advantages

Has really good tensile strength

Low permeability to air and other gases

Aging resistance, abrasion resistance

Heat resistance, excellent wear resistance

Low resilience, ideal for vibration damping and shock absorption

Moderate resistance to abrasion and compression set

Highly resistant to mineral acids, alkaline and aqueous acids


Specifications

Length

Width

Thickness

10m-20m

0.92m-2m

1mm-20mm in roll

20mm-50mm in sheet




Property

SBR Rubber Sheet

Product Code

WT-SBR-01

WT-SBR-02

WT-SBR-03

Polymer

SBR/NR

SBR/NR

SBR/NR

Color

Black

Black

Black

Density

1.5 ~1.8 g/cm³

1.5 ~1.8 g/cm³

1.3 ±0.05 g/cm³

Hardness

70 ±5 Shore A

60 ±5 Shore A

60 ±5 Shore A

Tensile Strength

≥4 MPa

≥5 MPa

≥10 MPa

Elongation at Break

≥200%

≥250%

≥350%

Working Temperature

-25 to 70 ℃

-30 to 80 ℃

-35 to 85 ℃
